Product Description

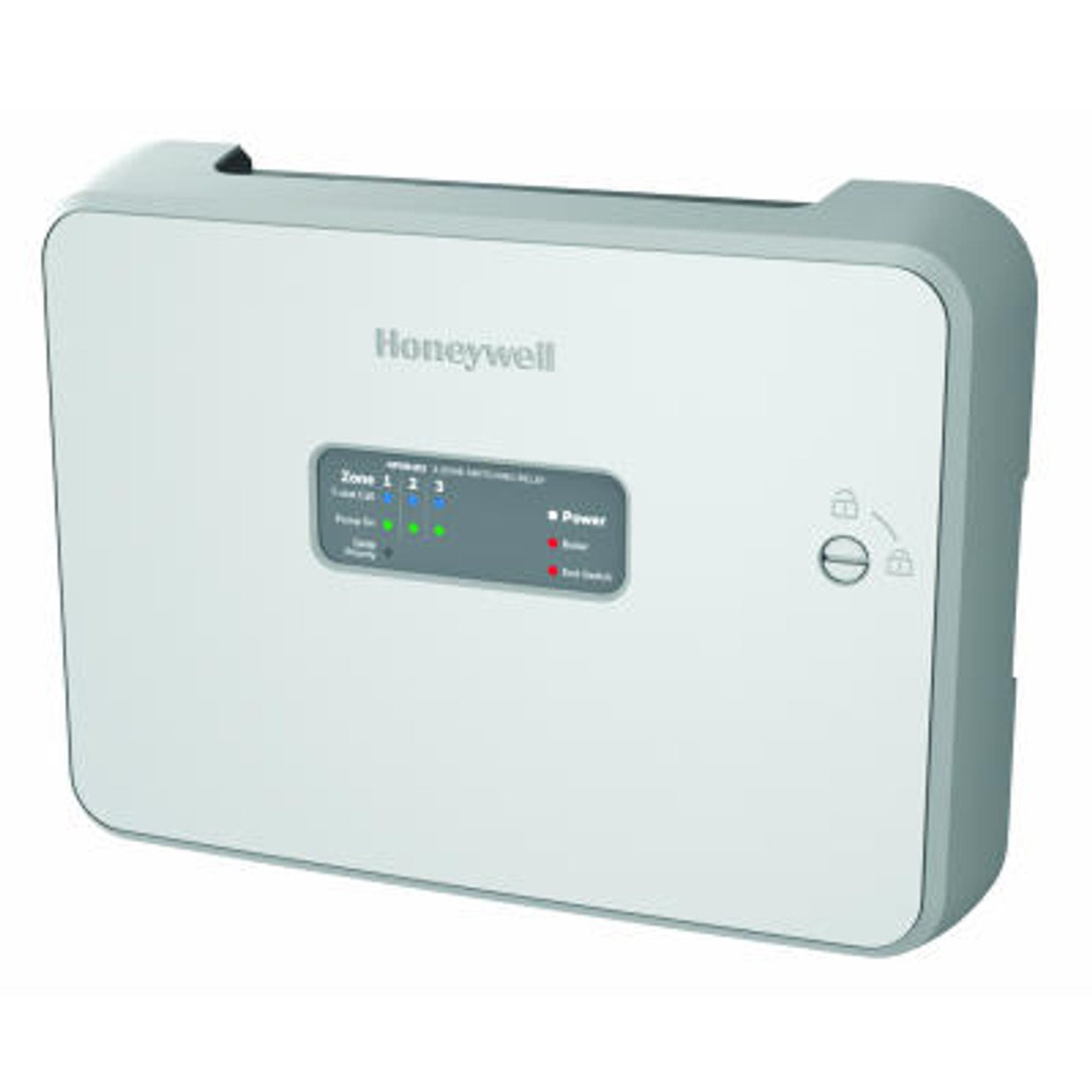

Familiar Setup-If you Know How to Install an Existing Panel, You can Install Ours Too, We Offer the Same Board Layout and Matching Functionality as Competitive Product
• Status Panel -LED Panel is Visible and Functional Whether the Cover is on or off Which Gives the Installer the Ability to Quickly Troubleshoot the System Saving Time and Effort
• Flex Panel Mounting - Gravity Centered Hang Hole Makes Quick Work of Mounting
• Hinged Door and Quarter Turn Access Screw - Quarter Turn Access and Hinge Off Front Cover Make Access Quick and Easy While Still Providing Safety
• Simple Layout Cover - Control Board is Covered to Reduce Visual Clutter and Provide a Surface on Which to Print Full Color Terminal Labels. Easy-to-Understand Labels Coded to Wire Colors will Increase Installation Speed and Decrease Errors""• Hydronic Zoning Switching Relay
• Item Switching Relay
• Type 3-Zone
• Overall Dimensions 11-3/4 Inch Width x 2-1/8 Inch Depth x 8-3/4 Inch Height
• Input Supply Rating 120 Volt AC 60 Hertz 1-Phase
• Inclusions/Features (1) 6 Amp Pump Fuse, (1) 24 Volt 15 Volt Amp Transformer, (3) Screw and (3) Wall Anchor (Mounting Hardware), (2) 2 Amp Fuse, Spare Status Label, Install Manual
• Application Hydronic Zoning Control
• Applicable Standard UL, CSA (Canada and US)
• Electrical Connection Quick Screw Terminal and Grounding Bar
• Maximum Combined Load 15 Amp
