Product Description

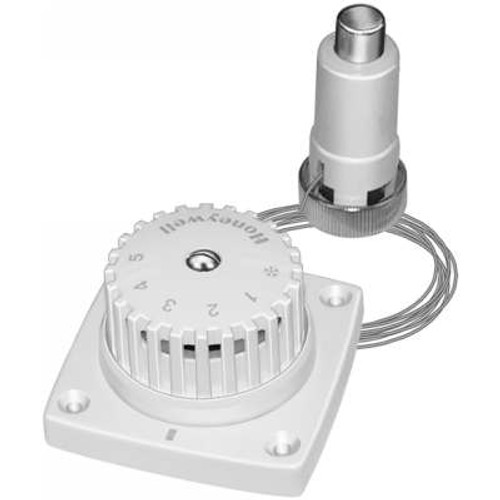

COMBINED REMOTE TEMP & SET/PTOverview
Allow automatic temperature control in two-pipe steam or hot water systems for free standing radiators, convectors, and other heating units with standard capacity requirements. Provide comfort and energy savings at affordable prices.
Features
- Continually monitor and adjust room temperature for consistent comfort and relief from under-heating and overheating.
- Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
- Nickel-plated brass casted body with working parts in cartridge insert for ease of service.
- Controls include sensor, setpoint dial and valve actuator; components may be integral or connected by capillary tubes.
- Require no electrical connections.
- All working parts are replaceable using service tool (MT100C1016) while valve remains in service, in-line, under pressure.
- Valves normally open without control mounted.
- Valves may also be used with MV100 Electric Zone Valve Actuator.
Product Specifications | |
| Application | A control with combined remote setpoint and sensor mounted on wall. Connected by a capillary tube to an actuator, which is mounted on the valve body. |
| Temperature Range (F) | 48 F to 79 F |
| Temperature Range (C) | 9 C to 26 C |
| Used With | V100, V2000 |
| Item Type | Product |
| Capillary Length (ft) | 6 1/2 ft |
| Capillary Length (m) | 2 m |
| Replaces | American Steam - 02-300-00. Taco - 5206. Danfoss RA2000 - 013G8262. Ammark - 76. TM Macon - TML B42000. NT Macon - NTL B45000. in combination with V2000 |
| Collar Diameter (in.) | 1 3/16 in. |
| Collar Diameter (mm) | 30 mm |
| Sensor (Integral or Remote) | Remote |
| Setpoint (Integral or Remote) | Remote |
Product Videos
Custom Field
MPN T100B1035
