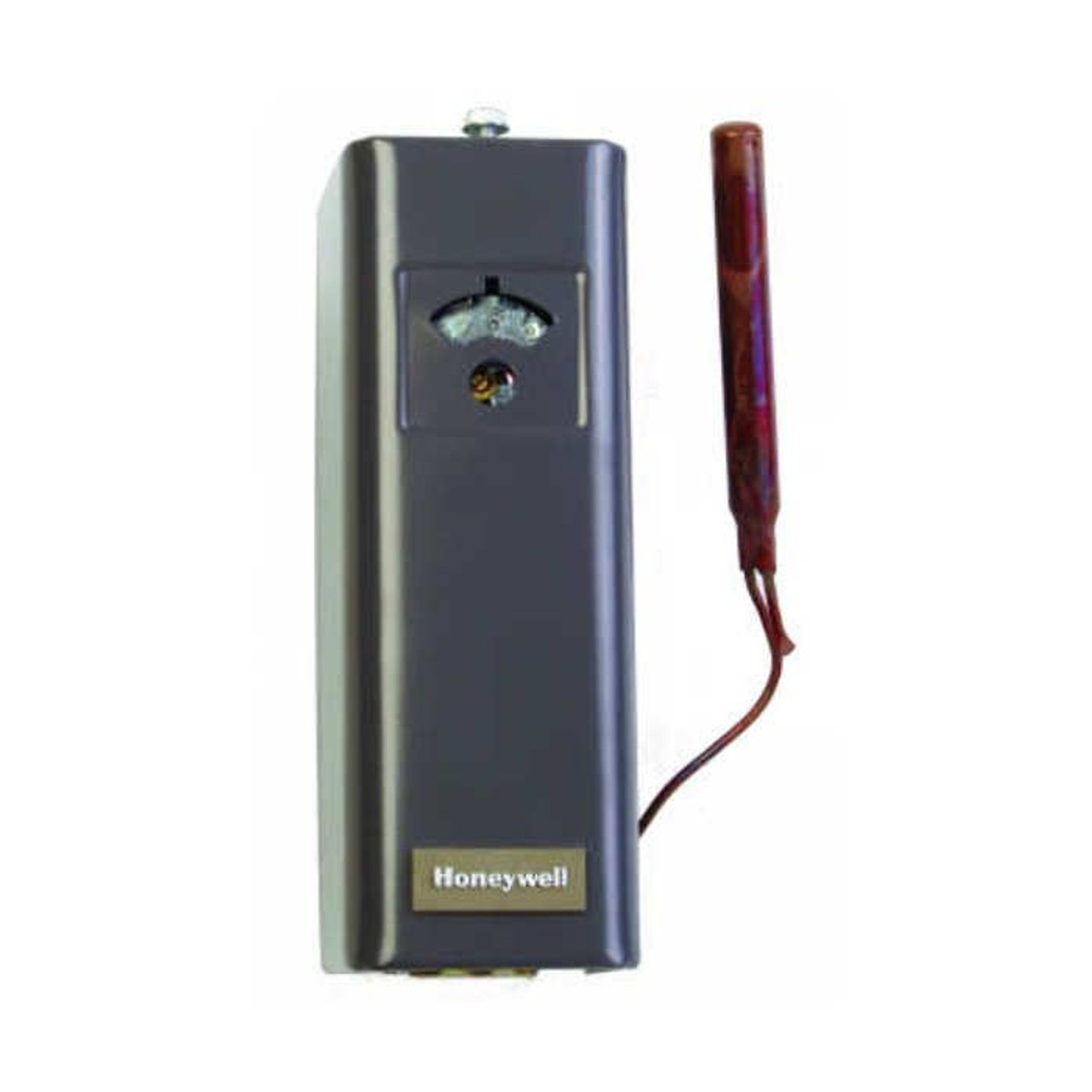

Aquastat Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required.FeaturesRemote temperature sensing element detects and responds rapidly to temperature changes.Totally enclosed Micro Switch™ snap-acting switch.Visible control point scale and external adjustment screw permit easy setting.Horizontal or vertical mounting of the remote element into boiler, tank, or other container.Case mounts to a vertical surface.
Product Specifications
Application
Circulator Control and Low Limit
Dimensions (in.)
Case--5 5/8 in. high x 2 in. wide x 2 1/8 in. deep
Dimensions (mm)
Case--143 mm high x 51 mm wide x 54 mm deep
Temperature Range (F)
Maximum--150 F
Temperature Range (C)
Maximum--66 C
Includes
66 in. capillary; Stop factory-set at 240 F (116 C)
Mounting
Horizontal or Vertical
Electrical Ratings
Millivolt--0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac
